Model Name
|
CAM-EN-DBI20-38
|
CAM-EN-BVI20-32
|
|
image Device
|
1/3 SONY
|
1/3 SONY
|
|
Resolution
|
540 TVL
|
420 TVL
|
|
Picture Elements
|
PAL:795(H)×596(V) :NTSC:811(H)×508(V)
|
PAL:500(H)×582(V); NTSC:510(H)×492(V)
|
|
Min. Illumination
|
0.2 Lux /F2.0
|
1.0 Lux /F2.0
|
|
TV System
|
PAL/NTSC
|
|
Lens Furnished
|
3.6 mm Board Lens (Optional 4mm or 6mm Board Lens)
|
|
Infrared Luminary
|
24 pieces ￠5 mm IR-LED
|
|
Illuminate Distance
|
20 M
|
|
Wavelength
|
850 nm
|
|
Waterproofing Criterion
|
IP 66
|
|
S/N Ratio
|
More than 48dB
|
|
Electronic Shutter
|
NTSC:1/60~1/100,000, PAL:1/50~1/110,000
|
|
Gamma
|
0.45
|
|
White Balance
|
Auto
|
|
Gain Control
|
Auto
|
|
Sync. System
|
Internal
|
|
Video Output
|
1 Vp-p / 75 Ohms
|
|
Power Supply
|
DC12V±10%
|
|
Operation Temperature
|
-10℃ ~ +50℃ RH95% Max
|
|
Dimension
|
¢106 x 69 mm
|
|
Features

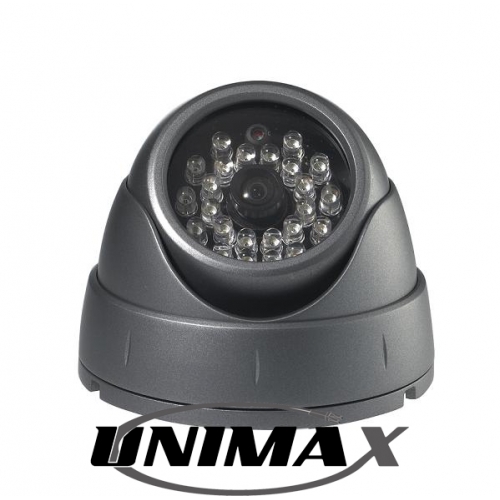

◆ Vandalproof IR Dome Camera
◆ SONY / SHARP Color CCD
◆ 24 pcs ￠5mm IR-LED, IR Range 20M
◆ New style design, easy for installtion
◆ Built-in 3.6mm Board Lens
